Metal VSP Ring Random Packing Tower Packing

Metal VSP Ring Random Packing Tower Packing

VSP ring also called inner arc ring. It is commonly made of stainless steel 304,
316 materials. Metallic VSP rings have reasonable geometric symmetry, which the
inner arc are folded evenly along the axial direction and replaced alternated
arranged.
  • Size :

    25mm,38mm,50mm,76mm
  • Material :

    304,304L,316,316L,2205,2507,copper,titanium,hastelloy
New Products
  • Product Details

Advantage of Metal VSP Ring Random Packing Tower Packing

1.Reasonable geometric symmetry to make Gas and liquid evenly distributed.

2.It is characterized in larger annual wall open area, large flux, small resistance and high mass transfer efficiency.

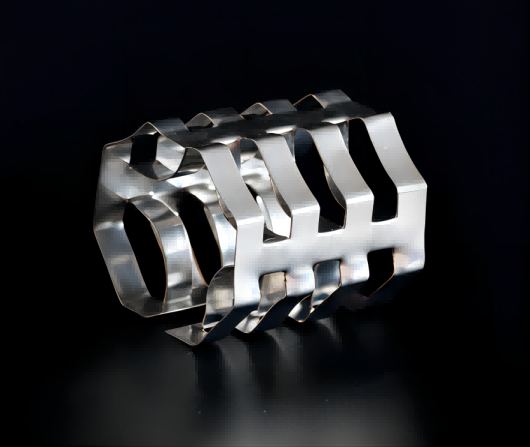

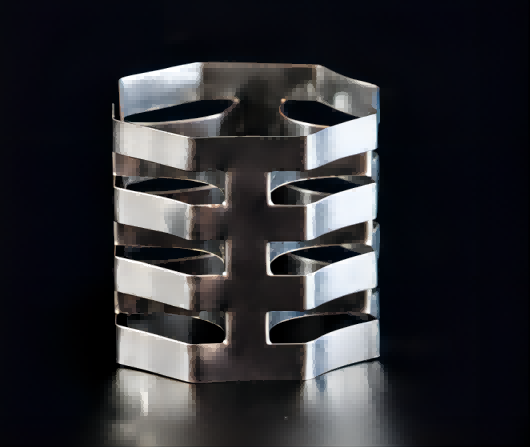

Product Detailed Pictures

vsp ring vsp ring tower packing



Technical Data



Size mm Surface area m2/m3 Void fraction % Bulk number pieces/m3
25 250 93 59200
38 138 94.7 14000
50 121 95 7000
76 75 95 1950



Prodution Process

Package Description



Package Carton Box, Woven Bag,Ton Bag, Wooden case
Container 20GP 40GP 40HQ Normal order Mininum order Sample order
Quantity 22CBM 44CBM 55CBM less than 22CBM 1CBM less than 5pcs
Delivery time 7days 14days 20days 7days 3days stock


Factory Advantage

Professional Mass Transfer Manufacturer
Digital Manufacturing Workshop Product Design and Customize Technical Support



Customer Service

OEM ODM EPC

Annual production :30,000 cubic meters

Production Capacity:28 advanced streamlined production lines

Well-established R&D capabilities

Designer with 15 years' experience

One set of work from project design, purchase,construction to  operation ,to provide customer a comprehensive solution.



Application:

1.Applied in separation tower ,absorbing tower,desorption tower and  atmospheric vacuum distillation tower

2.Used in decarbonization of synthetic ammonia ,desulfurization of synthetic ammonia,separation of ethylbenzene,separation of isoctane and toluene separation
