Graphite Raschig Ring: The Ultimate Solution for Aggressive Acid Services

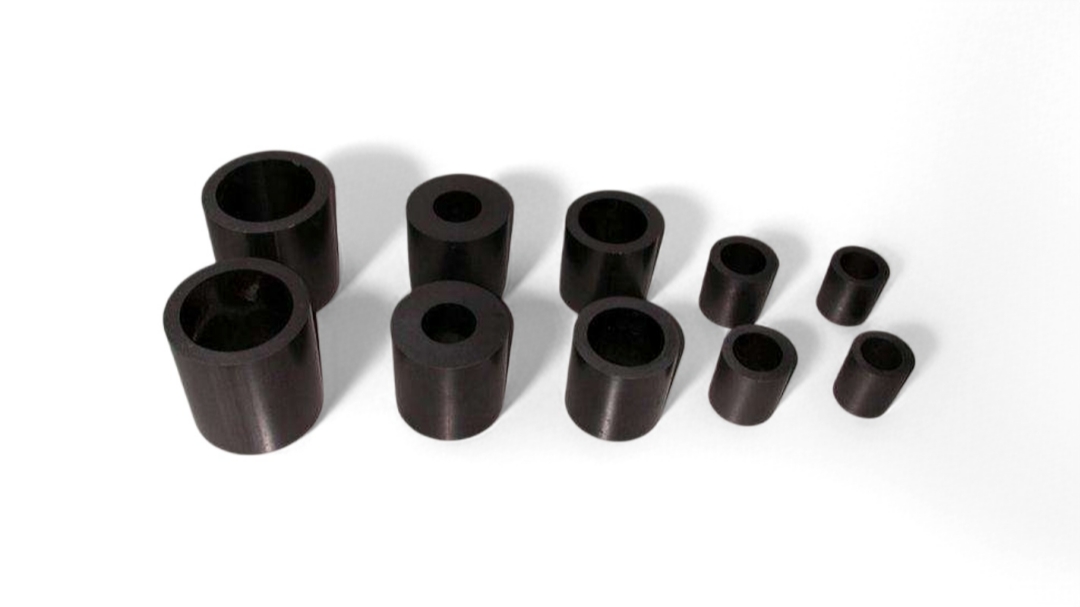

Figure 1: High-purity impervious graphite raschig rings offering chemical inertness and thermal conductivity.

When stainless steel succumbs to corrosion and ceramics fail to transfer heat, Graphite Raschig Rings provide the critical solution. As the original random packing design, the Raschig Ring geometry combined with impervious graphite creates a packing that is chemically inert to nearly all acids (except strong oxidizers) and possesses thermal conductivity rivaling that of metals. It is the backbone of Hydrochloric Acid (HCl) recovery, HBr production, and sulfuric acid dilution coolers.

This guide covers the unique properties of graphite packing and the engineering safeguards required to handle its brittle nature.

Performance & Property Comparison

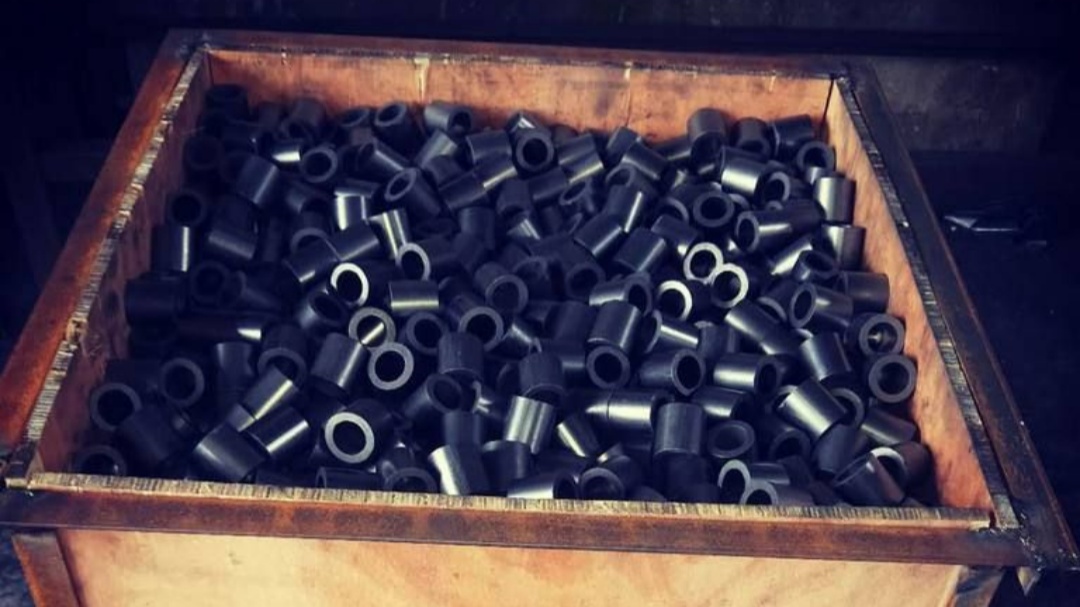

Trap 1: Impact Damage During Loading

Graphite has virtually no elasticity. Dropping rings from a height of just 1 meter can cause internal micro-fractures that lead to catastrophic failure under load. Always use a canvas chute to gently slide rings into the column. Never throw bags of packing directly into the tower.

Trap 2: Thermal Shock in Jacketed Columns

While graphite handles high temperatures well, rapid temperature changes (e.g., cold water entering a hot acid tower) can cause cracking. Ensure gradual heating and cooling cycles (ramp rates < 30°C/hr) and verify uniform flow distribution across the heat exchange jacket.

Trap 3: Misapplication in Oxidizing Environments

Graphite is carbon. In the presence of strong oxidizing agents (Concentrated Nitric Acid, Hydrogen Peroxide, Chlorine), graphite will oxidize and erode rapidly. Do not use graphite in bleach plants or nitric acid recovery. Switch to ceramic or tantalum-lined packings.

1. Grade Selection: Specify "Impervious Graphite" (resin-impregnated) for most absorption duties to prevent acid penetration. Use "Porous Graphite" only for specific catalytic or filtration applications.

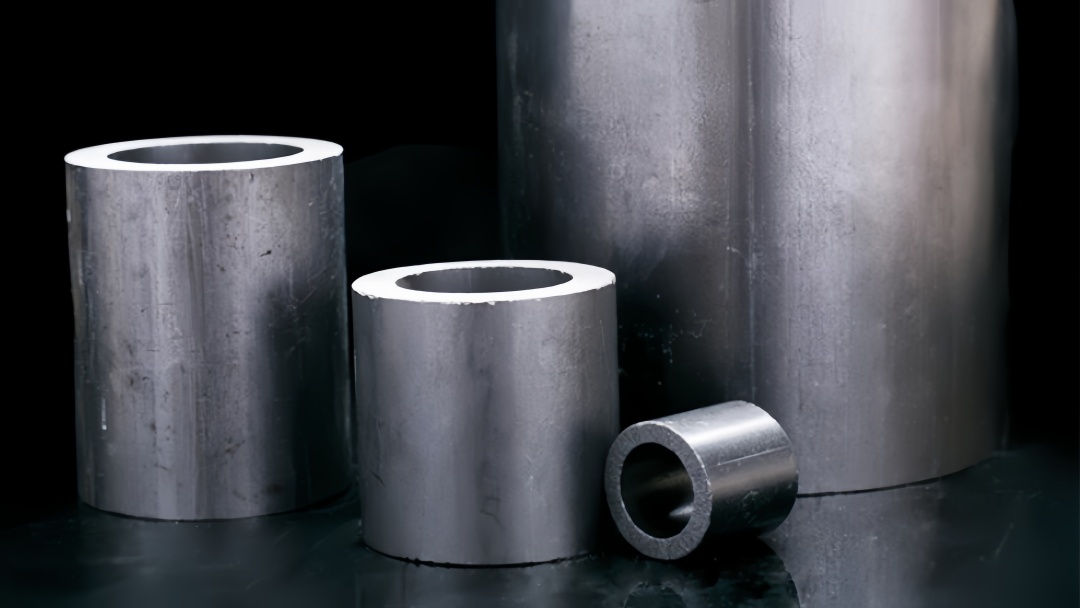

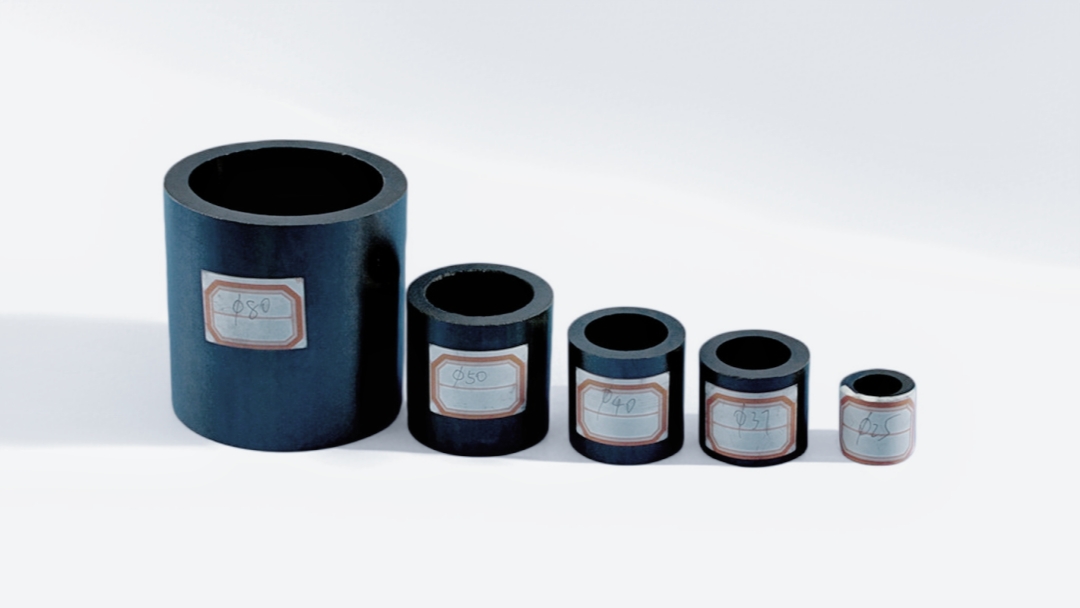

2. Size vs. Pressure Drop: #25mm and #38mm are standard. If pressure drop is critical in a deep bed, consider #50mm, but note that smaller sizes offer higher mass transfer efficiency.
3. Bulk Density Check: Reputable suppliers provide a tight bulk density range (e.g., 720-760 kg/m³). A low density indicates high porosity or impurities which compromise strength.
4. Support Grid Design: Because graphite cannot bear sharp point loads, the support grid must be flat and covered with a layer of ceramic raschig rings or a perforated plate to distribute weight evenly.
