📅April 18, 2024  |  📂Category: Tower Packing Technology  |  ✍️FXSINO Technical Team

Unlocking Peak Performance: Key Advantages and Engineering Insights of Cascade Rings

In the realm of chemical and petrochemical engineering, achieving optimal gas-liquid mass transfer efficiency while minimizing operational costs is paramount. Cascade Rings, also known as Metal Stepped Rings, represent a revolutionary advancement in high-efficiency tower packing. Engineered to outperform traditional random packings like Raschig rings and even Pall rings, Cascade Rings offer superior performance metrics crucial for modern industrial applications.

1. Exceptional Performance Advantages

Significantly Reduced Pressure Drop

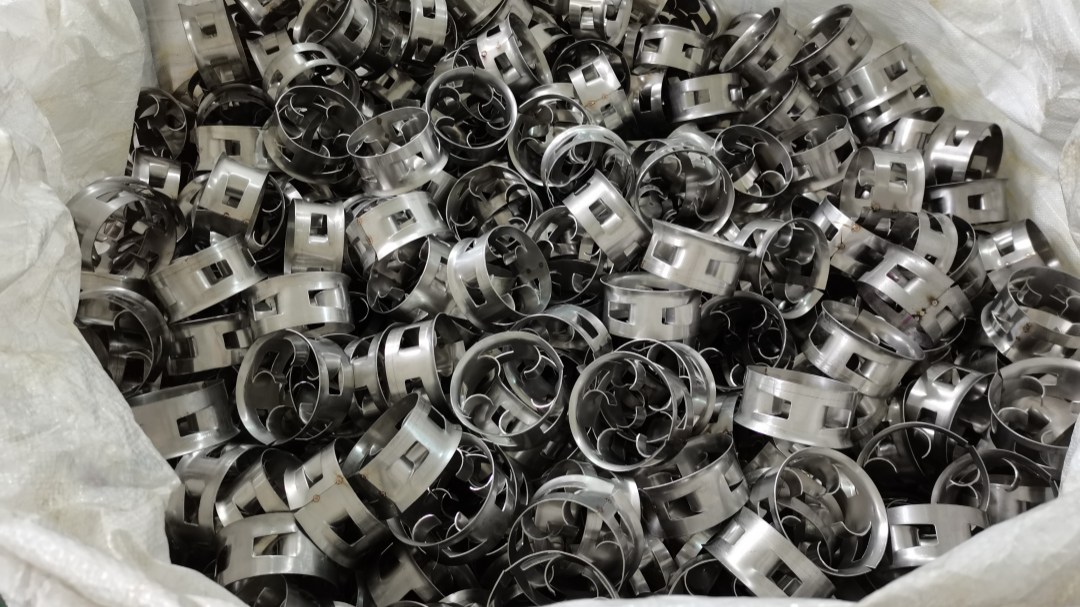

The unique geometry of the metal stepped ring—featuring large gaps and an optimized flux path—dramatically reduces resistance to gas flow. This low pressure drop characteristic not only saves energy but is also critical for maintaining efficiency in vacuum distillation processes operating at temperatures up to 120°C.

Increased Capacity & Enhanced Anti-Fouling

By keeping the reaction contact away from pressure drop obstructions, Cascade Rings can handle a higher volume of gas-liquid mixture, effectively increasing the capacity of the reaction tower by approximately 10%. Furthermore, the pointing position of the stepped ring acts as a self-cleaning mechanism, preventing solids from accumulating and significantly enhancing anti-fouling ability.

Optimized Reaction Efficiency

Unlike parallel surface designs, the vertical limiting surface of the Cascade Ring creates more prominent advantages in mass transfer. This multi-point contact design promotes uniform liquid distribution and turbulent mixing, maximizing the active surface area for chemical reactions with specific surface areas ranging from 200–300 m2/m3.

2. How Cascade Rings Work in Packed Towers

A packed tower utilizing Cascade Rings serves as a continuous contact gas-liquid mass transfer device. The tower is filled with an appropriate height of this stepped ring packing to facilitate intimate contact between the descending liquid and the ascending gas.

• Liquid Flow: Enters via a gas distribution device at the top and flows downward over the packing surface, forming a uniform thin film.
• Gas Flow: Enters from the bottom and travels upward through the gaps at velocities optimized for maximum mass transfer efficiency.

This counter-current flow creates a uniform bed layer, effectively preventing channeling and wall flow, which are common inefficiencies in poorly designed towers.

3. The Engineering Leap: Cascade Rings vs. Pall Rings

While Pall rings laid the groundwork for modern random packing, Cascade Rings introduced critical structural innovations that deliver measurable performance gains:

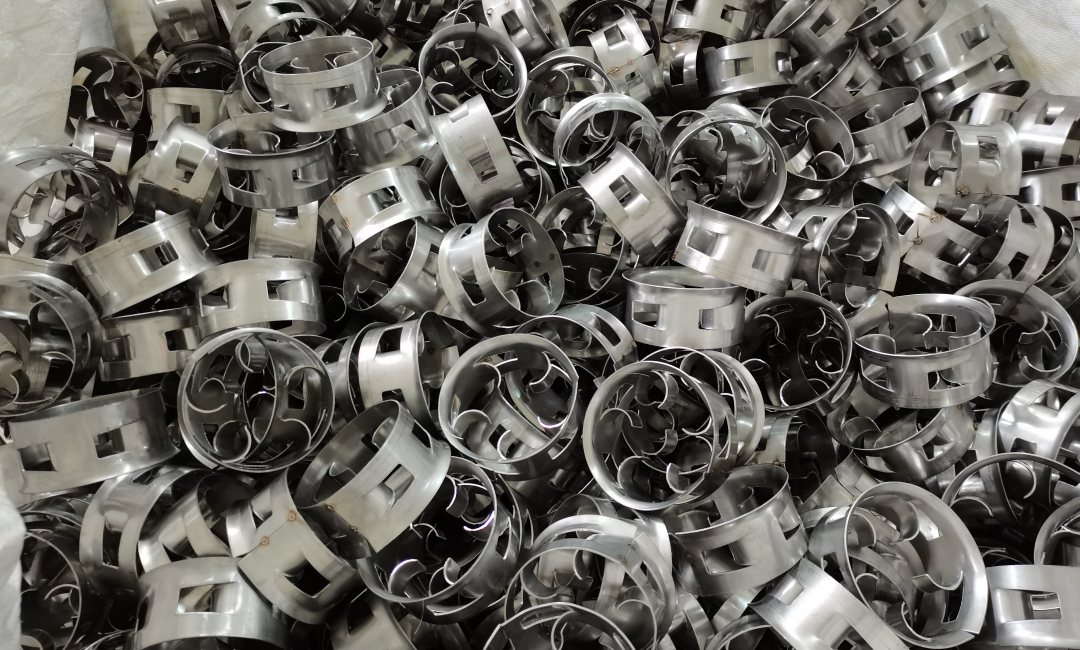

The flared edge and shorter height allow the liquid to spread more evenly across the packing surface, preventing the inside of the ring from remaining dry. This structural superiority makes Cascade Rings the preferred choice for applications demanding high purity and low energy consumption.

4. Primary Applications

Thanks to their robust construction and superior mass transfer coefficients, Cascade Rings are widely utilized across multiple industries:

• Gas Absorption & Scrubbing: For removing harmful gases including SO2 and NOx in flue gas desulfurization systems.
• Distillation & Extraction Columns: Especially in vacuum operations and thermal sensitive separations requiring minimal pressure drop.
• Chemical Reactors: Where enhanced mixing and anti-fouling properties are required for consistent yields.
• Environmental Engineering: Wastewater treatment and solvent recovery applications demanding high separation efficiency.

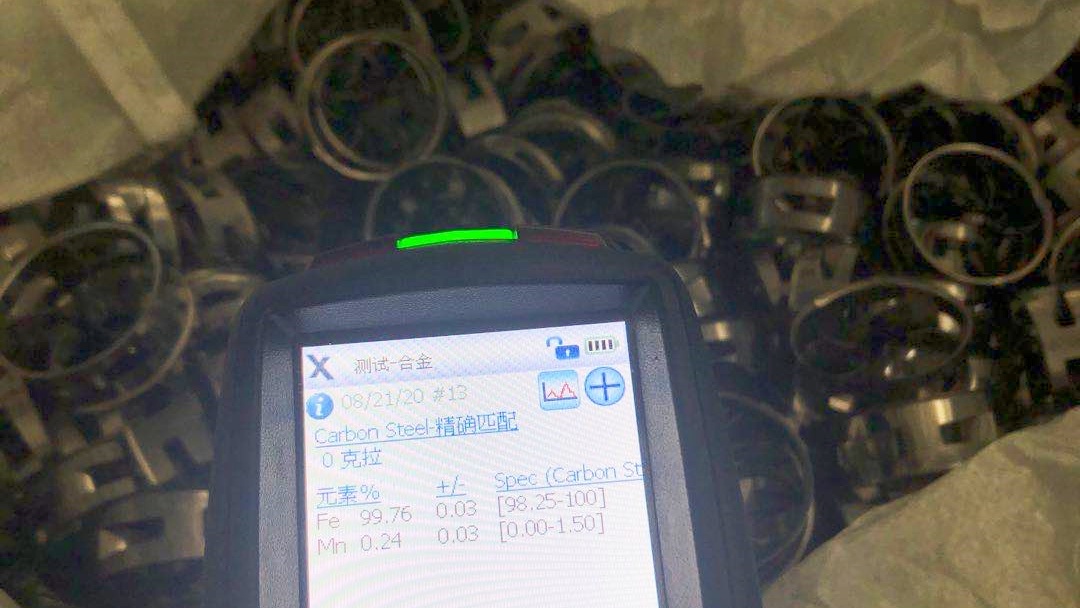

Technical Specifications
