Dixon Packing: The Ultimate Guide to High-Purity Separation & Laboratory Distillation

📅April 10, 2025  |  ✍️FXSINO Technical Team

In the world of chemical engineering and laboratory-scale separations, achieving high purity often requires specialized equipment. Dixon packing, also known as the θ-ring (theta ring), stands out as a superior solution for high-purity and small batch processing. Unlike traditional solid fillers, this unique wire mesh structure offers unparalleled mass transfer efficiency, making it the go-to choice for demanding distillation and absorption applications.

What is Dixon Packing?

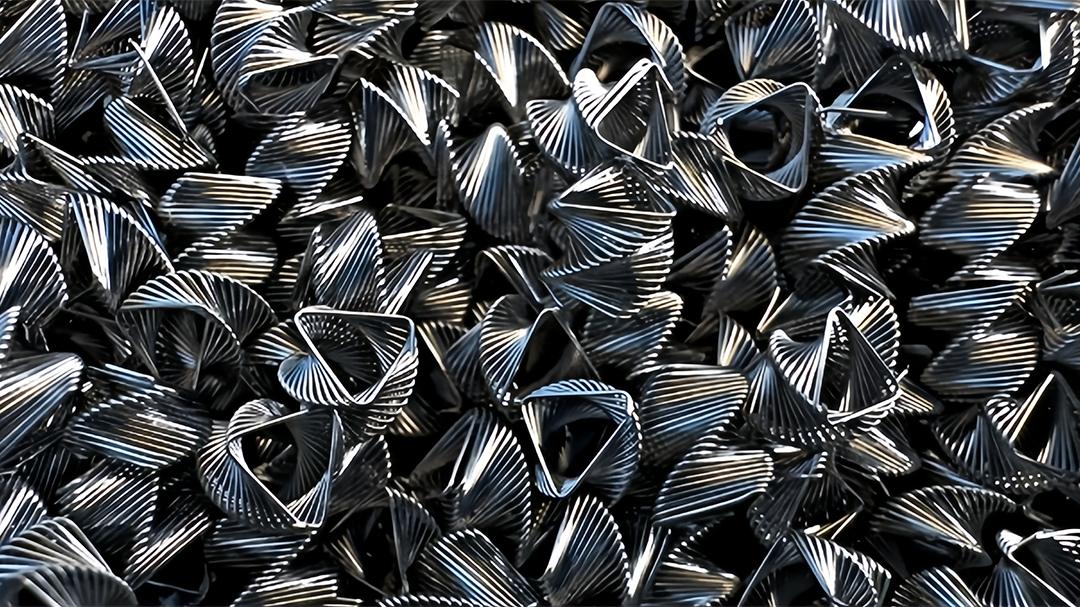

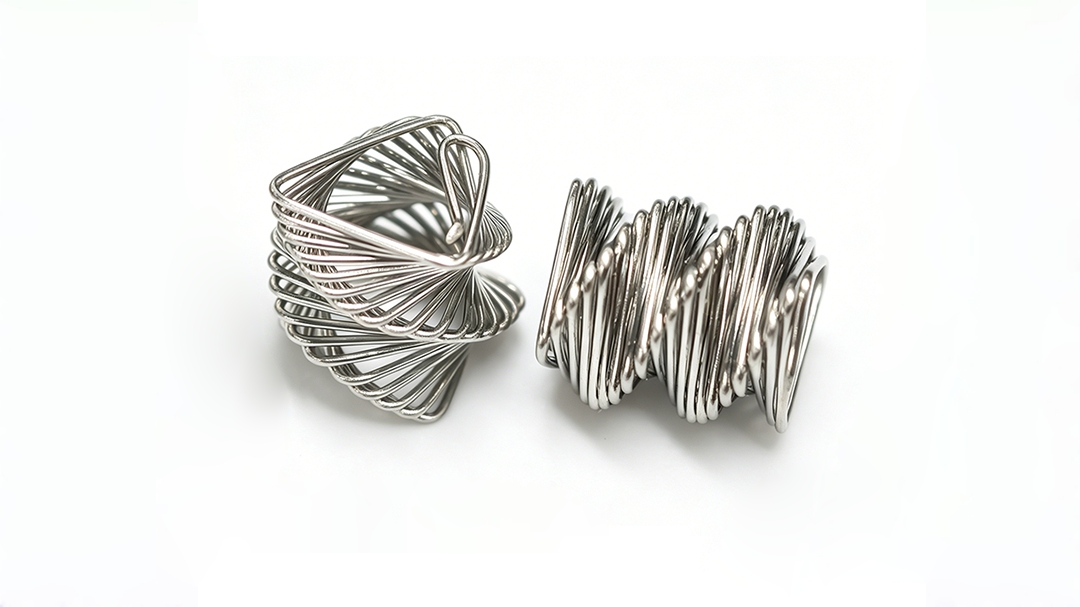

Dixon packing is a type of small particle, high-efficiency packing meticulously manufactured from metal wire mesh, typically stainless steel or copper. Its most defining geometric feature is that its diameter is equal to its height (d=h), creating a distinctive "theta" shape.

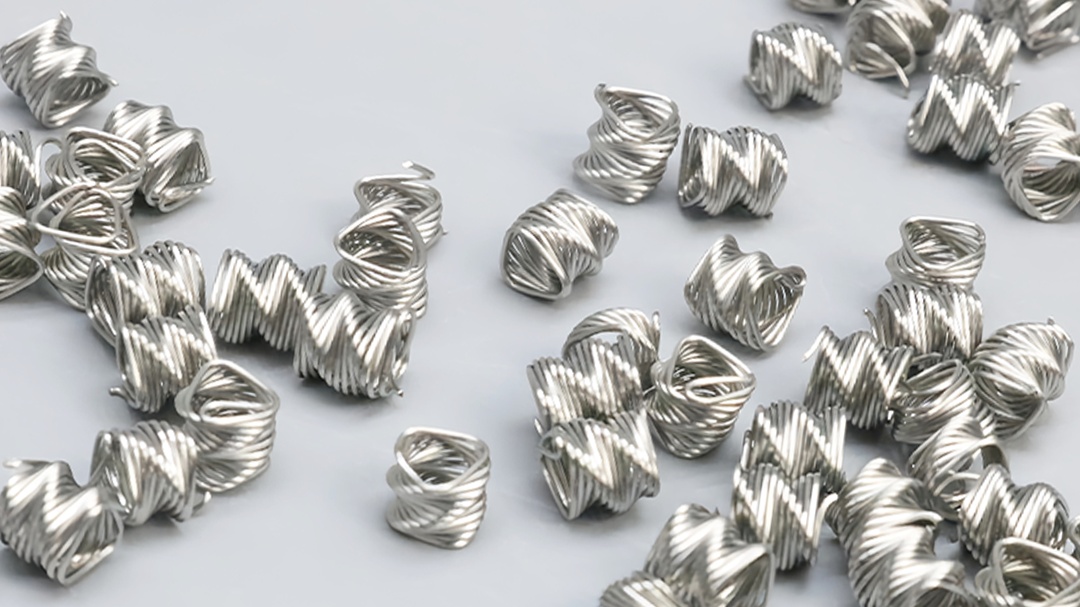

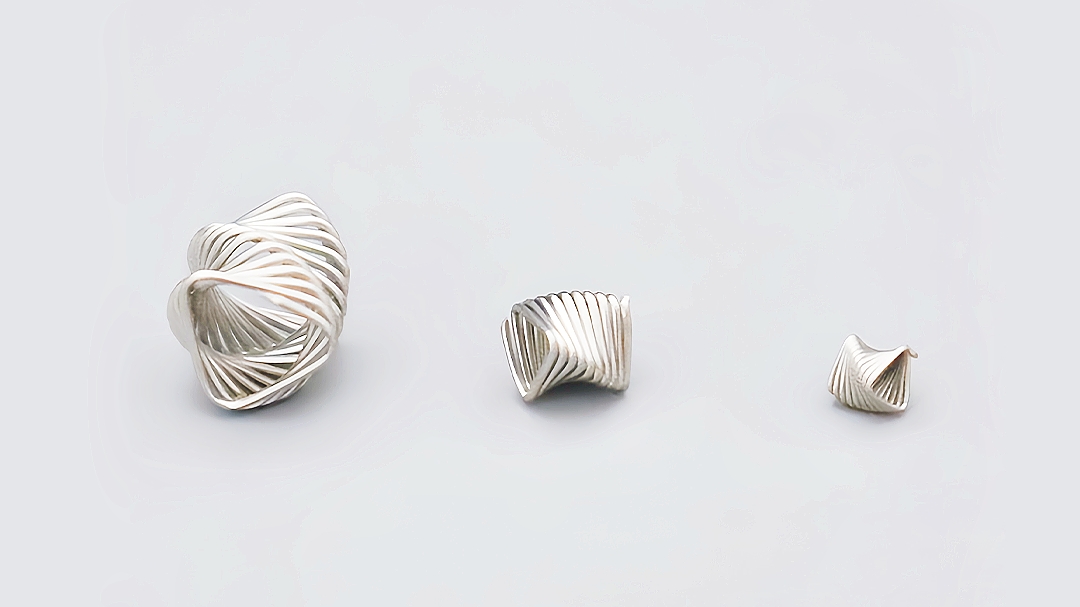

Available in various mesh sizes, Dixon rings are designed to maximize surface area while minimizing pressure drop. Common specifications include:

2×2 | 3×3 | 4×4 | 5×5 | 6×6 | 7×7 | 8×8 | 9×9 | 10×10 | 11×11 | 12×12 mm

This wide range allows engineers to select the perfect size for specific column diameters and flow rates.

Key Performance Advantages

The exceptional performance of Dixon packing is largely attributed to the capillary action of the fine metal mesh. Here are the primary advantages that make it superior to conventional ceramic or plastic rings:

1. Superior Liquid Distribution & Film Formation

The metal wire mesh allows liquid to form a uniform, thin film rather than flowing in large droplets. This maximizes the gas-liquid contact area, which is crucial for efficient heat and mass transfer.

2. Elimination of Channeling

The structure effectively disrupts preferential flow paths. This significantly reduces unstable phenomena such as channel flow (where gas bypasses the liquid) and wall flow, ensuring a more consistent and efficient separation process.

3. Low Pressure Drop

The open, skeletal structure of the wire mesh results in lower resistance to gas flow compared to solid packings. This makes Dixon rings particularly suitable for high vacuum distillation processes where minimizing pressure drop is critical.

4. High Separation Efficiency (High Theoretical Plates)

Due to the complete wetting of the metal surface and the large effective surface area, Dixon packing achieves a higher film formation rate. It delivers a greater number of theoretical plates per meter of bed height, meaning purer products can be obtained in shorter columns.

Factors Affecting Efficiency

While highly efficient, the performance of Dixon packing is influenced by several operational factors:

• Gas Velocity: Efficiency generally increases with higher gas velocities up to an optimal point.
• Surface Wettability: Higher wettability of the packing surface leads to better film formation and improved mass transfer.
• Column Diameter: There is a proportional relationship between packing efficiency and column diameter. Smaller diameter towers tend to show more pronounced efficiency characteristics.
• Pre-wetting Treatment: Proper pre-wetting of the packing before operation is essential to achieve stable and efficient performance. When Dr/d > 10, HETP = 0.8–1.2 Dr; when Dr/d > 70, separation efficiency decreases significantly.

Why Choose Double-Layer Dixon Rings?

For enhanced mechanical stability and separation efficiency, Dixon rings are available in both single-layer and double-layer configurations. Double-layer Dixon rings feature an additional layer of mesh, which greatly improves the mechanical strength and rigidity of the packing.

For applications requiring larger sizes (generally 5×5 mm or larger), the double-layer variant is highly recommended to prevent deformation and maintain structural integrity under load.

Typical Applications

Thanks to its unique properties, Dixon packing is primarily used in scenarios requiring precision and high purity:

• Laboratory & R&D: Ideal for small-scale glass distillation columns and pilot plants.
• High-Purity Chemical Separation: Essential for separating complex mixtures in fine chemical and pharmaceutical synthesis.
• Isotope Separation: Used in specialized applications for the separation of stable isotopes due to its ultra-high efficiency.
• Solvent Recovery: Efficiently purifies and recovers high-value solvents in small batches.

Technical Specifications

Conclusion

When your process demands the highest levels of purity in a small-scale setting, Dixon packing (θ-ring) is the definitive choice. Its innovative wire mesh design overcomes the limitations of traditional solid packings, offering superior mass transfer, reduced pressure drop, and unmatched efficiency.

Tags: Dixon Packing Theta Ring Metal Wire Mesh Packing Laboratory Distillation High Purity Separation
