Random Packing Tower Packing Raschig Ring

Random Packing Tower Packing Raschig Ring

It is a earliest development of random packing, which its height is equal to outside diameter.Raschig ring was invented by German Chemist Friedrich Raschig in 1914, it also marks that the development of fills hds entered a scientific track .However, in the actual application, such as "wall flow, channel flow and so on" often happened in packed bed.

  • Size :

    6mm,13mm,16mm,19mm,25mm,38mm,40mm,50mm,80mm,100mm
  • Material :

    Ceramic
New Products
  • Product Details

Advantages of  Random Packing Raschig Ring

1.Ceramic Pall rings have good acid resistance and heat resistance.

2.It can resist the corrosion of various inorganic acids, organic acids, and organic solvents except for hydrofluoric acid, and can be used under high and low temperature conditions.

Product Detailed Pictures

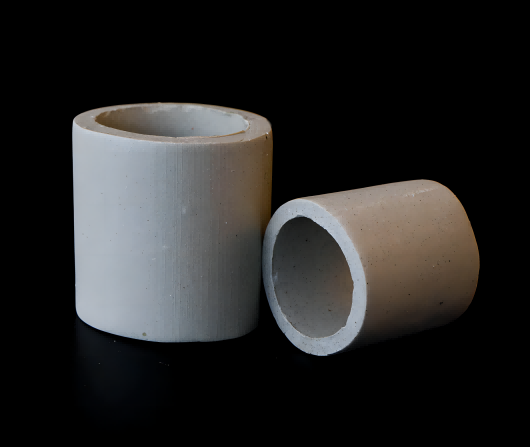

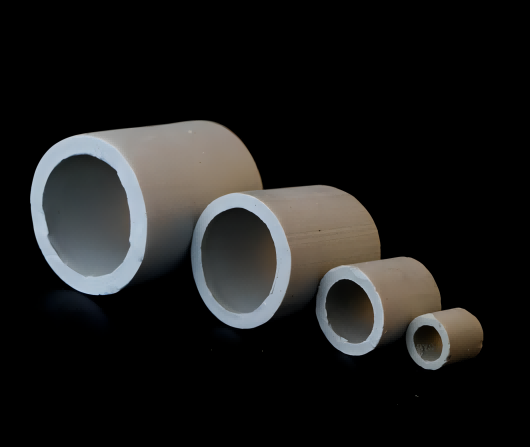

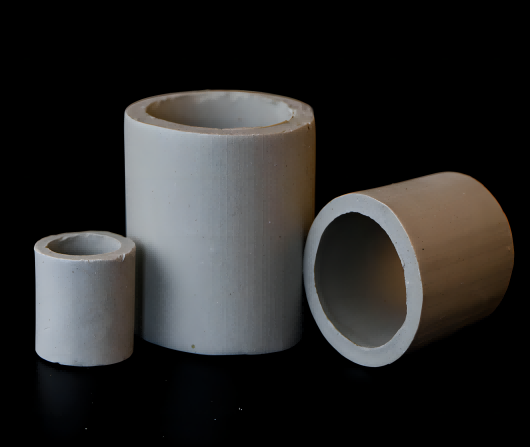

ceramic raschig ring ceramic raschig packing tower packing



Technical Data

size mm surface area m2/m3 void fraction % bulk number pieces/m3
6 712 62 3022935
13 367 64 377867
16 305 73 192500
19 243 72 109122
25 190 74 47675
38 121 73 13667
40 126 75 12700
50 92 74 5792
80 46 80  1910
100 70 70 1000

Prodution Process

Package Description



Package Carton Box, Woven Bag,Ton Bag, Wooden case
Container 20GP 40GP 40HQ Normal order Mininum order Sample order
Quantity 22CBM 44CBM 55CBM less than 22CBM 1CBM less than 5pcs
Delivery time 7days 14days 20days 7days 3days stock


Factory Advantage

Professional Mass Transfer Manufacturer
Digital Manufacturing Workshop Product Design and Customize Technical Support



Customer Service

OEM ODM EPC

Annual production :30,000 cubic meters

Production Capacity:28 advanced streamlined production lines

Well-established R&D capabilities

Designer with 15 years' experience

One set of work from project design, purchase,construction to  operation ,to provide customer a comprehensive solution.



Application:

1.Can be used for drying towers, absorption towers, cooling towers, washing towers, activity towers, etc. in industries such as chemical, metallurgical, gas, and oxygen production
