Plastic Flat Ring Tower Packing

Plastic Flat Ring Tower Packing

Flat ring is also called SMR(Super Mini Ring), It s an advanced random packing in the column tower packing. It has similar structure with cascade mini ring, There is not flanging structure at the top and bottom. It can improve the packing strength through adjust the arc of internal blade. It has reasonable flow structure, low pressure drop and high mass transfer performance. Super mini ring has two main types, which names as QH-1 and QH-2.



  • Size :

    38mm,50mm,76mm
  • Material :

    PP,HDPE,PVC,PPH,CPVC,PTFE,PVDF,PFA
New Products
  • Product Details

Advantage of Plastic Flat Ring Tower Packing

1.Large flux to distrubute gas and liquid, small resistance

2.High mass transfer efficiency for gas and liquid distrubution, high operating flexibility for installation.

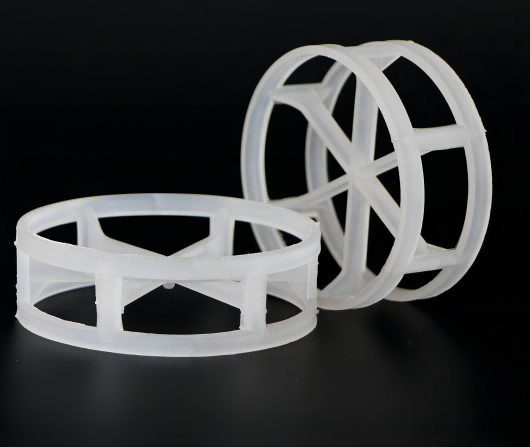

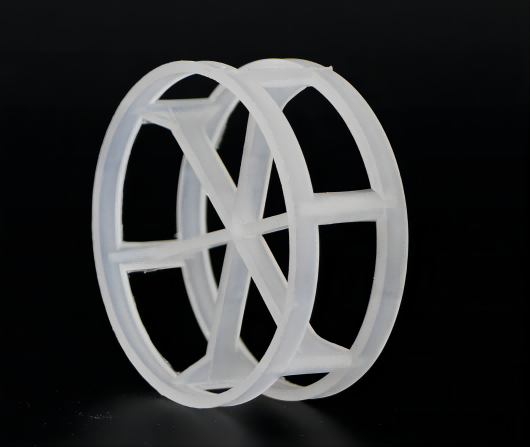

Product Detailed Pictures

plastic flat ring plastic flat ring tower packing



Technical Data

                     Size mm                  Surface area m2/m3                    Void Fraction%                    Bulk Number pieces/m3
                    38*12*12                          145                             92                              46000
                    50*17*1.5                          128                             93                              21500
                    76*26*2.5                           116                             93                               6500



Prodution Process

Package Description



Package Carton Box, Woven Bag,Ton Bag, Wooden case
Container 20GP 40GP 40HQ Normal order Mininum order Sample order
Quantity 22CBM 44CBM 55CBM less than 22CBM 1CBM less than 5pcs
Delivery time 7days 14days 20days 7days 3days stock


Factory Advantage

Professional Mass Transfer Manufacturer
Digital Manufacturing Workshop Product Design and Customize Technical Support



Customer Service

OEM ODM EPC

Annual production :30,000 cubic meters

Production Capacity:28 advanced streamlined production lines

Well-established R&D capabilities

Designer with 15 years' experience

One set of work from project design, purchase,construction to  operation ,to provide customer a comprehensive solution.



Application:

1.Used in desiccation tower

2.Used in absorption tower.

3.Used in cooling tower

4.Used in washing tower
